SpringBoot集成MySQL - MyBatis-Plus代码自动生成

本文主要介绍 MyBatis-Plus代码自动生成,以及产生此类代码生成工具的背景和此类工具的基本实现原理。@pdai

知识准备

需要了解MyBatis和MyBatis-Plus基础,并了解产生此类代码生成工具的背景和基本原理。

MyBatis-Plus相关

SpringBoot集成MySQL - MyBatis-Plus方式

为什么会产生此类代码生成工具?

由于CRUD的工作占了普通开发很多工作,而这些工作是重复的,所以出现了此类的代码生成工具。这些工具通过模板引擎来生成代码,常见于三方集成工具,IDE插件等等。

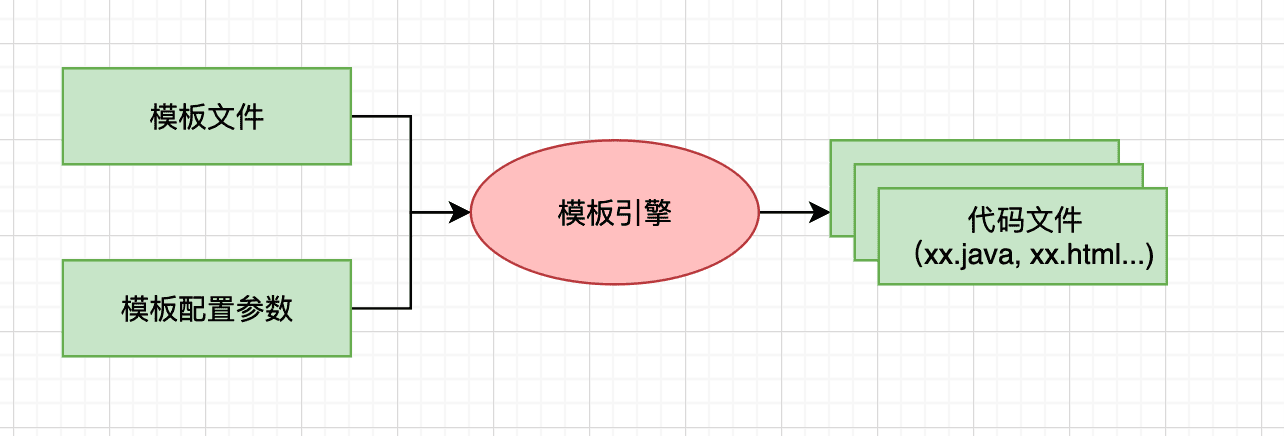

什么是模板引擎?

模板引擎可以在代码生成过程中减少大量机械重复工作,大大提高开发效率,良好的设计使得代码重用,后期维护都降低成本。一个好的模板引擎的使用要考虑的方面无外乎:功能是否强大,使用是否简单,整合性、扩展性与灵活性,性能。

比如:

  • Velocity
  • FreeMarker
  • Thymeleaf
  • ...

简单示例

这里展示通过MyBatis-Plus生成代码实现的

准备DB

创建MySQL的schema test_db, 导入SQL 文件如下

-- MySQL dump 10.13  Distrib 5.7.12, for Win64 (x86_64)
--
-- Host: localhost    Database: test_db
-- ------------------------------------------------------
-- Server version	5.7.17-log

/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;

--
-- Table structure for table `tb_role`
--

DROP TABLE IF EXISTS `tb_role`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `tb_role` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) NOT NULL,
  `role_key` varchar(255) NOT NULL,
  `description` varchar(255) DEFAULT NULL,
  `create_time` datetime DEFAULT NULL,
  `update_time` datetime DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `tb_role`
--

LOCK TABLES `tb_role` WRITE;
/*!40000 ALTER TABLE `tb_role` DISABLE KEYS */;
INSERT INTO `tb_role` VALUES (1,'admin','admin','admin','2021-09-08 17:09:15','2021-09-08 17:09:15');
/*!40000 ALTER TABLE `tb_role` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `tb_user`
--

DROP TABLE IF EXISTS `tb_user`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `tb_user` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `user_name` varchar(45) NOT NULL,
  `password` varchar(45) NOT NULL,
  `email` varchar(45) DEFAULT NULL,
  `phone_number` int(11) DEFAULT NULL,
  `description` varchar(255) DEFAULT NULL,
  `create_time` datetime DEFAULT NULL,
  `update_time` datetime DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `tb_user`
--

LOCK TABLES `tb_user` WRITE;
/*!40000 ALTER TABLE `tb_user` DISABLE KEYS */;
INSERT INTO `tb_user` VALUES (1,'pdai','dfasdf','suzhou.daipeng@gmail.com',1212121213,'afsdfsaf','2021-09-08 17:09:15','2021-09-08 17:09:15');
/*!40000 ALTER TABLE `tb_user` ENABLE KEYS */;
UNLOCK TABLES;

--
-- Table structure for table `tb_user_role`
--

DROP TABLE IF EXISTS `tb_user_role`;
/*!40101 SET @saved_cs_client     = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `tb_user_role` (
  `user_id` int(11) NOT NULL,
  `role_id` int(11) NOT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;

--
-- Dumping data for table `tb_user_role`
--

LOCK TABLES `tb_user_role` WRITE;
/*!40000 ALTER TABLE `tb_user_role` DISABLE KEYS */;
INSERT INTO `tb_user_role` VALUES (1,1);
/*!40000 ALTER TABLE `tb_user_role` ENABLE KEYS */;
UNLOCK TABLES;
/*!40103 SET TIME_ZONE=@OLD_TIME_ZONE */;

/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;

-- Dump completed on 2021-09-08 17:12:11

添加POM依赖

包括mybatis-plus-generator和默认的模板引擎velocity依赖的velocity-engine-core。

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.5.1</version>
</dependency>
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-generator</artifactId>
    <version>3.5.2</version>
</dependency>
<dependency>
    <groupId>org.apache.velocity</groupId>
    <artifactId>velocity-engine-core</artifactId>
    <version>2.0</version>
</dependency>

代码生成配置

mybatis-plus-generator 3.5.1 及其以上版本,对历史版本不兼容!3.5.1 以下的请参考这里在新窗口打开

import com.baomidou.mybatisplus.generator.FastAutoGenerator;

/**
 * This class is for xxxx.
 *
 * @author pdai
 */
public class TestGenCode {

    public static void main(String[] args) {
        FastAutoGenerator.create("jdbc:mysql://localhost:3306/test_db?useSSL=false&autoReconnect=true&characterEncoding=utf8", "test", "bfXa4Pt2lUUScy8jakXf")
                .globalConfig(builder ->
                        builder.author("pdai") // 设置作者
                                .enableSwagger() // 开启 swagger 模式
                )
                .packageConfig(builder ->
                        builder.parent("tech.pdai.springboot.mysql8.mybatisplus.anno") // 设置父包名
                                .moduleName("gencode") // 设置父包模块名
                )
                .strategyConfig(builder ->
                        builder.addInclude("tb_user", "tb_role", "tb_user_role")
                )
                .execute();
    }
}

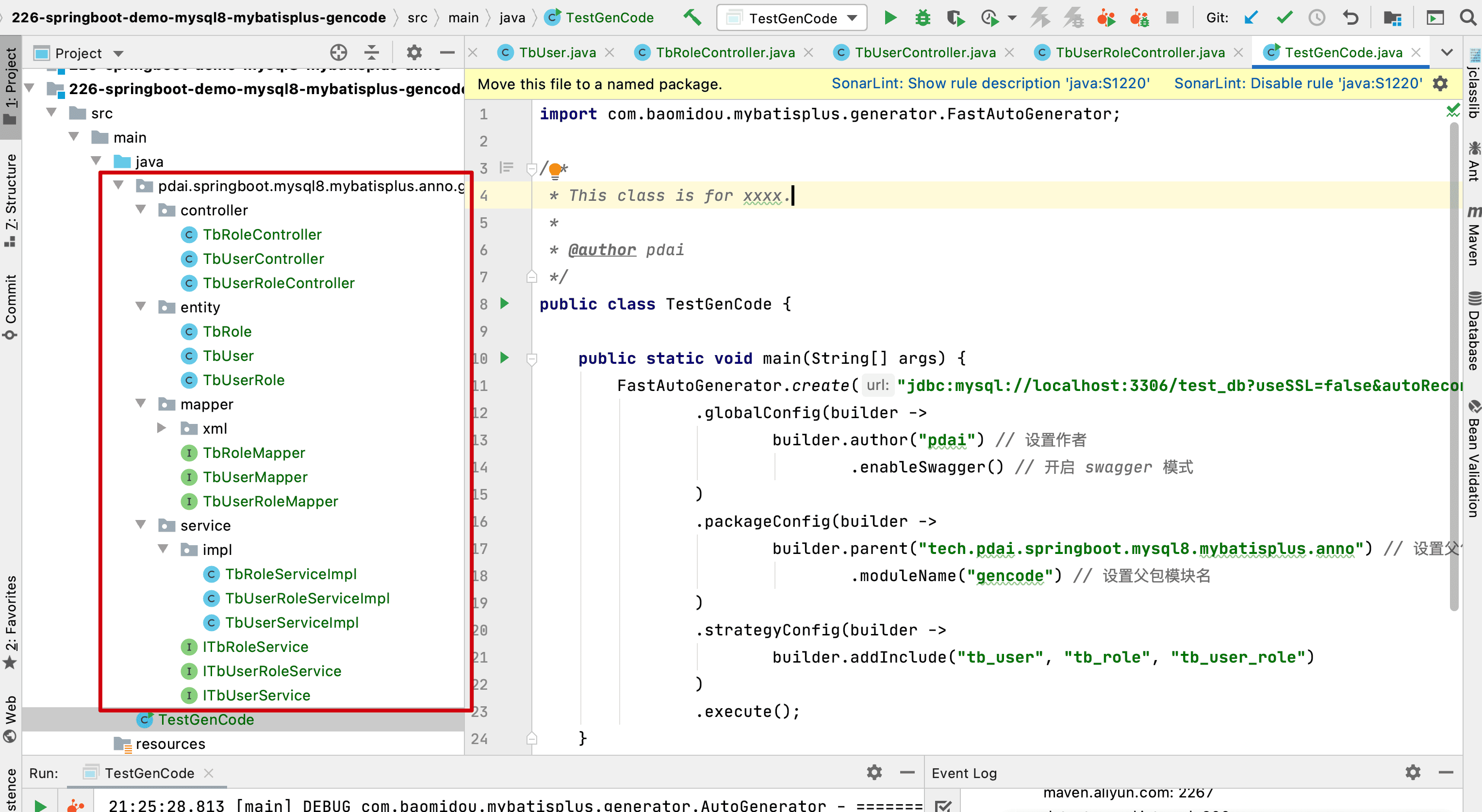

生成代码

进一步理解

主要了解MyBatis-Plus生成代码的原理。

代码生成的基本原理

其实代码生成是非常简单的,有了模板引擎的介绍,我们再看下MyBatis-Plus的代码生成工具是如何生成代码的。

配置的装载, FastAutoGenerator本质上就是通过builder注入各种配置,并将它交给代码生成主类:AutoGenerator

public void execute() {
    new AutoGenerator(this.dataSourceConfigBuilder.build())
        // 全局配置
        .global(this.globalConfigBuilder.build())
        // 包配置
        .packageInfo(this.packageConfigBuilder.build())
        // 策略配置
        .strategy(this.strategyConfigBuilder.build())
        // 注入配置
        .injection(this.injectionConfigBuilder.build())
        // 模板配置
        .template(this.templateConfigBuilder.build())
        // 执行
        .execute(this.templateEngine);
}

AutoGenerator中execute方法,包括初始化配置和模板引擎(默认是Velocity),然后将配置交给模板引擎初始化执行文件输出

/**
  * 生成代码
  *
  * @param templateEngine 模板引擎
  */
public void execute(AbstractTemplateEngine templateEngine) {
    logger.debug("==========================准备生成文件...==========================");
    // 初始化配置
    if (null == config) {
        config = new ConfigBuilder(packageInfo, dataSource, strategy, template, globalConfig, injection);
    }
    if (null == templateEngine) {
        // 为了兼容之前逻辑,采用 Velocity 引擎 【 默认 】
        templateEngine = new VelocityTemplateEngine();
    }
    templateEngine.setConfigBuilder(config);
    // 模板引擎初始化执行文件输出
    templateEngine.init(config).batchOutput().open();
    logger.debug("==========================文件生成完成!!!==========================");
}

模板引擎中batchOuput方法中,包含获取表的信息并根据模板来生成类文件。

/**
  * 批量输出 java xml 文件
  */
@NotNull
public AbstractTemplateEngine batchOutput() {
    try {
        ConfigBuilder config = this.getConfigBuilder();
        List<TableInfo> tableInfoList = config.getTableInfoList();
        tableInfoList.forEach(tableInfo -> {
            Map<String, Object> objectMap = this.getObjectMap(config, tableInfo);
            Optional.ofNullable(config.getInjectionConfig()).ifPresent(t -> {
                t.beforeOutputFile(tableInfo, objectMap);
                // 输出自定义文件
                outputCustomFile(t.getCustomFile(), tableInfo, objectMap);
            });
            // entity
            outputEntity(tableInfo, objectMap);
            // mapper and xml
            outputMapper(tableInfo, objectMap);
            // service
            outputService(tableInfo, objectMap);
            // controller
            outputController(tableInfo, objectMap);
        });
    } catch (Exception e) {
        throw new RuntimeException("无法创建文件,请检查配置信息!", e);
    }
    return this;
}

获取表的列表,由ConfigBuilder完成

public List<TableInfo> getTableInfoList() {
    if (tableInfoList.isEmpty()) {
        // TODO 暂时不开放自定义
        List<TableInfo> tableInfos = new IDatabaseQuery.DefaultDatabaseQuery(this).queryTables();
        if (!tableInfos.isEmpty()) {
            this.tableInfoList.addAll(tableInfos);
        }
    }
    return tableInfoList;
}

然后获取上述单个表(tableInfo)的具体信息(objectMap)

/**
  * 渲染对象 MAP 信息
  *
  * @param config    配置信息
  * @param tableInfo 表信息对象
  * @return ignore
  */
@NotNull
public Map<String, Object> getObjectMap(@NotNull ConfigBuilder config, @NotNull TableInfo tableInfo) {
    StrategyConfig strategyConfig = config.getStrategyConfig();
    Map<String, Object> controllerData = strategyConfig.controller().renderData(tableInfo);
    Map<String, Object> objectMap = new HashMap<>(controllerData);
    Map<String, Object> mapperData = strategyConfig.mapper().renderData(tableInfo);
    objectMap.putAll(mapperData);
    Map<String, Object> serviceData = strategyConfig.service().renderData(tableInfo);
    objectMap.putAll(serviceData);
    Map<String, Object> entityData = strategyConfig.entity().renderData(tableInfo);
    objectMap.putAll(entityData);
    objectMap.put("config", config);
    objectMap.put("package", config.getPackageConfig().getPackageInfo());
    GlobalConfig globalConfig = config.getGlobalConfig();
    objectMap.put("author", globalConfig.getAuthor());
    objectMap.put("kotlin", globalConfig.isKotlin());
    objectMap.put("swagger", globalConfig.isSwagger());
    objectMap.put("date", globalConfig.getCommentDate());
    // 启用 schema 处理逻辑
    String schemaName = "";
    if (strategyConfig.isEnableSchema()) {
        // 存在 schemaName 设置拼接 . 组合表名
        schemaName = config.getDataSourceConfig().getSchemaName();
        if (StringUtils.isNotBlank(schemaName)) {
            schemaName += ".";
            tableInfo.setConvert(true);
        }
    }
    objectMap.put("schemaName", schemaName);
    objectMap.put("table", tableInfo);
    objectMap.put("entity", tableInfo.getEntityName());
    return objectMap;
}

根据TableInfo和objectMap输出类文件,以输出Entity实体类为例

/**
  * 输出实体文件
  *
  * @param tableInfo 表信息
  * @param objectMap 渲染数据
  * @since 3.5.0
  */
protected void outputEntity(@NotNull TableInfo tableInfo, @NotNull Map<String, Object> objectMap) {
    String entityName = tableInfo.getEntityName();
    String entityPath = getPathInfo(OutputFile.entity);
    if (StringUtils.isNotBlank(entityName) && StringUtils.isNotBlank(entityPath)) {
        getTemplateFilePath(template -> template.getEntity(getConfigBuilder().getGlobalConfig().isKotlin())).ifPresent((entity) -> {
            String entityFile = String.format((entityPath + File.separator + "%s" + suffixJavaOrKt()), entityName);
            outputFile(new File(entityFile), objectMap, entity, getConfigBuilder().getStrategyConfig().entity().isFileOverride());
        });
    }
}

在outputFile中来确定生成文件的名字和路径

/**
  * 输出文件
  *
  * @param file         文件
  * @param objectMap    渲染信息
  * @param templatePath 模板路径
  * @param fileOverride 是否覆盖已有文件
  * @since 3.5.2
  */
protected void outputFile(@NotNull File file, @NotNull Map<String, Object> objectMap, @NotNull String templatePath, boolean fileOverride) {
    if (isCreate(file, fileOverride)) {
        try {
            // 全局判断【默认】
            boolean exist = file.exists();
            if (!exist) {
                File parentFile = file.getParentFile();
                FileUtils.forceMkdir(parentFile);
            }
            writer(objectMap, templatePath, file);
        } catch (Exception exception) {
            throw new RuntimeException(exception);
        }
    }
}

最后通过writer方法生成文件

/**
  * 将模板转化成为文件
  *
  * @param objectMap    渲染对象 MAP 信息
  * @param templatePath 模板文件
  * @param outputFile   文件生成的目录
  * @throws Exception 异常
  * @since 3.5.0
  */
public void writer(@NotNull Map<String, Object> objectMap, @NotNull String templatePath, @NotNull File outputFile) throws Exception {
    this.writer(objectMap, templatePath, outputFile.getPath());
    logger.debug("模板:" + templatePath + ";  文件:" + outputFile);
}

本质上就是调用模板引擎来生成

    @Override
    public void writer(@NotNull Map<String, Object> objectMap, @NotNull String templatePath, @NotNull File outputFile) throws Exception {
        Template template = velocityEngine.getTemplate(templatePath, ConstVal.UTF8);
        try (FileOutputStream fos = new FileOutputStream(outputFile);
             OutputStreamWriter ow = new OutputStreamWriter(fos, ConstVal.UTF8);
             BufferedWriter writer = new BufferedWriter(ow)) {
            template.merge(new VelocityContext(objectMap), writer);
        }
    }

比如Entity,velocityEngine.getTemplate会获取如下entity.vm模板生成Entity的类文件。

package ${package.Entity};

#foreach($pkg in ${table.importPackages})
import ${pkg};
#end
#if(${swagger})
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
#end

/**
 * <p>
 * $!{table.comment}
 * </p>
 *
 * @author ${author}
 * @since ${date}
 */
#if(${table.convert})
@TableName("${schemaName}${table.name}")
#end
#if(${swagger})
@ApiModel(value = "${entity}对象", description = "$!{table.comment}")
#end
#if(${superEntityClass})
class ${entity} : ${superEntityClass}#if(${activeRecord})<${entity}>#end() {
#elseif(${activeRecord})
class ${entity} : Model<${entity}>() {
#elseif(${entitySerialVersionUID})
class ${entity} : Serializable {
#else
class ${entity} {
#end

## ----------  BEGIN 字段循环遍历  ----------
#foreach($field in ${table.fields})
#if(${field.keyFlag})
#set($keyPropertyName=${field.propertyName})
#end
#if("$!field.comment" != "")
    #if(${swagger})
    @ApiModelProperty(value = "${field.comment}")
    #else
    /**
     * ${field.comment}
     */
    #end
#end
#if(${field.keyFlag})
## 主键
#if(${field.keyIdentityFlag})
    @TableId(value = "${field.annotationColumnName}", type = IdType.AUTO)
#elseif(!$null.isNull(${idType}) && "$!idType" != "")
    @TableId(value = "${field.annotationColumnName}", type = IdType.${idType})
#elseif(${field.convert})
    @TableId("${field.annotationColumnName}")
#end
## 普通字段
#elseif(${field.fill})
## -----   存在字段填充设置   -----
#if(${field.convert})
    @TableField(value = "${field.annotationColumnName}", fill = FieldFill.${field.fill})
#else
    @TableField(fill = FieldFill.${field.fill})
#end
#elseif(${field.convert})
    @TableField("${field.annotationColumnName}")
#end
## 乐观锁注解
#if(${field.versionField})
    @Version
#end
## 逻辑删除注解
#if(${field.logicDeleteField})
    @TableLogic
#end
    #if(${field.propertyType} == "Integer")
    var ${field.propertyName}: Int? = null
    #else
    var ${field.propertyName}: ${field.propertyType}? = null
    #end

#end
## ----------  END 字段循环遍历  ----------
#if(${entityColumnConstant})
    companion object {
#foreach($field in ${table.fields})

        const val ${field.name.toUpperCase()} : String = "${field.name}"

#end
    }

#end
#if(${activeRecord})
    override fun pkVal(): Serializable? {
#if(${keyPropertyName})
        return ${keyPropertyName}
#else
        return null
#end
    }

#end
    override fun toString(): String {
        return "${entity}{" +
#foreach($field in ${table.fields})
#if($!{foreach.index}==0)
        "${field.propertyName}=" + ${field.propertyName} +
#else
        ", ${field.propertyName}=" + ${field.propertyName} +
#end
#end
        "}"
    }
}

同理生成mapper, service, controller等文件。是不是很简单?

如何看MyBatis-Plus生成代码的功能?

简单而言,对于初学者好像能生成代码作用很大,实际情况是很鸡肋!

  • 从上面的源码我们可以看出,生成类只适合单表结构,表的关联无法处理;
  • 对于单表的CRUD类,如果可以自动化生成,必然是可以很好的抽象的,而BaseMapper, BaseServiceImpl的封装已经足够了;
  • 通常真正可以通过一体化集成前端代码的生成,才有一定的意义;
  • 当然少部分情况快速提供接口的可以考虑,不过其实也省不了什么时间。

示例源码

https://github.com/realpdai/tech-pdai-spring-demos
